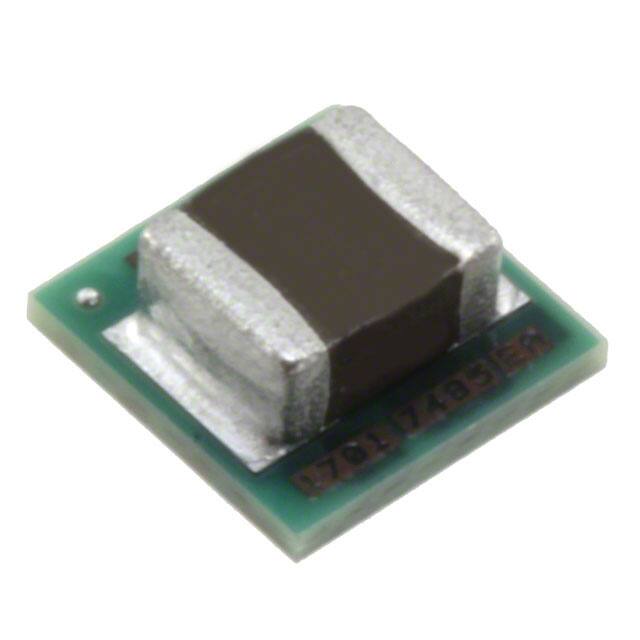

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Factory Lead Time

12 Weeks

Mounting Type

Surface Mount

Package / Case

8-SMD Module

Number of Pins

8

Voltage - Input (Nom)

3.6V

SwitchingFrequency

3MHz

Operating Temperature

-40°C~125°C

Packaging

Tape & Reel (TR)

Series

SIMPLE SWITCHER® Nano

Size / Dimension

0.14Lx0.14W x 0.07 H 3.5mmx3.5mmx1.8mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

8

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Applications

ITE (Commercial)

Terminal Position

DUAL

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

LMZ20501

Number of Outputs

1

Efficiency

91%

Voltage - Input (Max)

5.5V

Output Type

Adjustable

Voltage - Input (Min)

2.7V

Current - Output (Max)

1A

Current - Output

1A

Quiescent Current

72nA

Max Output Voltage

3.6V

Voltage - Output

3.6V

Control Mode

VOLTAGE-MODE

Control Technique

PULSE WIDTH MODULATION

Min Output Voltage

800mV

Switcher Configuration

BUCK

Features

OCP, OTP, SCP, UVLO

Height

1.778mm

Length

3.5mm

Width

3.5mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
